Our Range

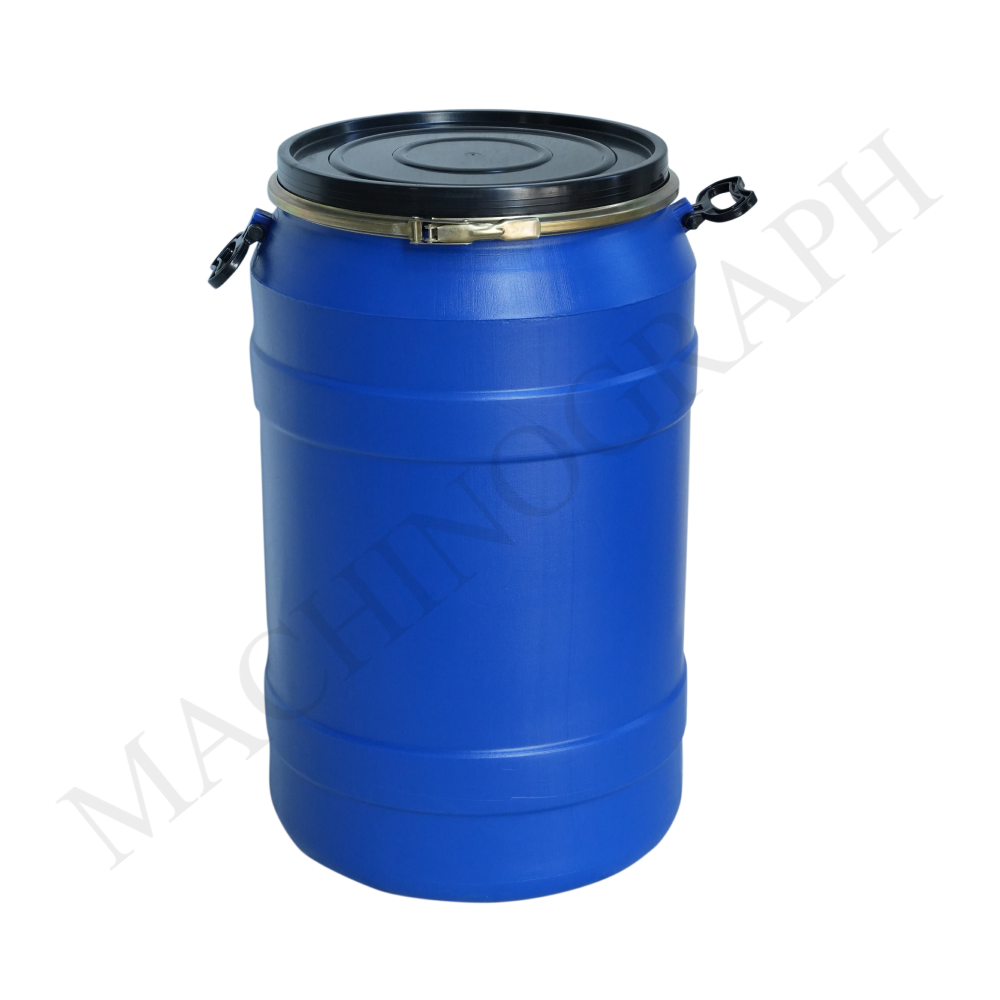

Full open mouth with metal strap (FOM) 120 FOM

MODEL TYPE 120 FOM
SIZE in Ltrs 120
Brimfull capacity in Ltrs.(water) 123
Tare Wt. kgs.(+/- 3%) * 5.5
Height mm (with cap) (+/- 10mm) 776
Diameter mm (+/- 10mm) 473
Cap size (+/- 2mm) 432
Cap/Mouth Inside Diameter (+/- 2mm) 390

All Drums are in Blue Colour with Black Cap. Special sizes can be manufactured on request …

Stuffing Plan
Send Enquiry

Checkout other Products

Narrow Mouth (NM)

Narrow Mouth (NM)

Narrow Mouth Drums:With a small opening at the top, they provide a spill-proof solution for the storage and transportation of hazardous or non-hazardous materials. These drums are commonly used to store food, beverages, and ingredients. They can be used to store large quantities in bulk as our plastic drums are certified as food grade. Food grade certified plastic drums are specifically built to store foodstuffs for an extended period of time.
Optional Accessories

Optional Accessories

Machinograph with its large product range is satisfying its customer in petrochemicals, solvents, acids, oils, alcohols, cosmetics, dispersions, additives, specialty chemicals, textiles, foods & pharmaceuticals, etc..
Wide Mouth (WM)

Wide Mouth (WM)

Wide Mouth Drums 30 to 100 Litres are used in the packaging of semi-solid products, such as adhesives, food products etc. We do posses a good range of wide mouth drums in different capacities.
×
